Sidewalk & Curb Ramp Products

Standard ADA Dome Tiles

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
12” x 12”
24” x 24”
24” x 30”
24” x 36”
30” x 36”
24” x 48”

True Radius Tiles

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
24" Deep
36" Deep
10ft - 60ft Radius (other Radii available)

Block Pattern Tiles

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
24" x 24"
24" x 36"
24" x 48"

Brick Pattern Tiles

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
24" x 24"
24" x 36"
24" x 48"

45° Angle Tiles

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
24" Deep

TACTILE WARNING SURFACE INDICATOR (TWSI)

Available Colors (Call for Custom):
Federal Colors, Natural Colors,
Standard Sizes (Call for Custom):
12” x 12”
24” x 24”
24” x 30”
24” x 36”
30” x 36”
24” x 48”

Need help picking the best color that provides compliant contrast?

Try our Color Contrast Calculator to determine effective contrast for low-vision people, based on the color of your surroundings and the color of tile you'd prefer. Contrast is critical to being ADA compliant!

What are the main types of curb ramps?

Intersections

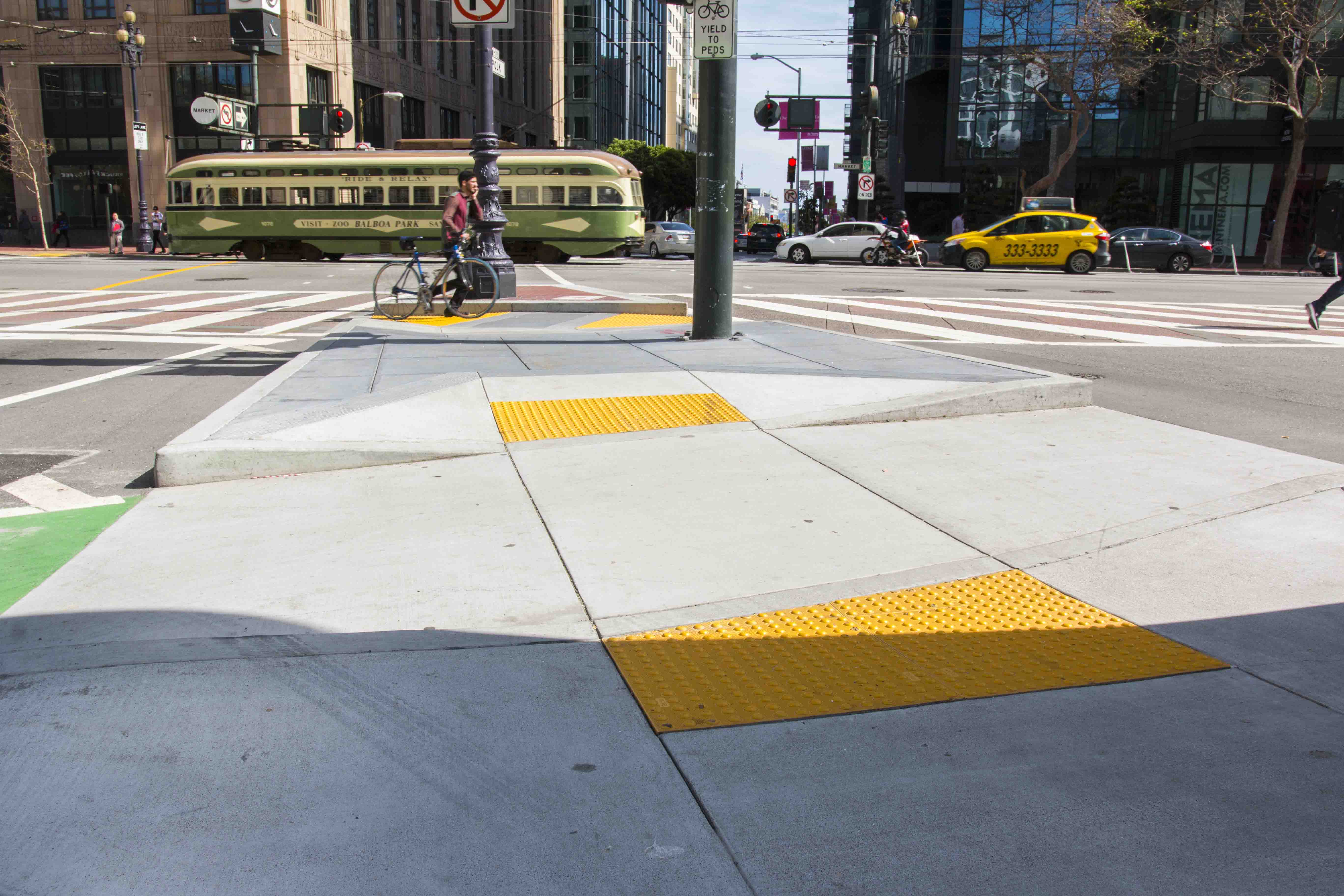

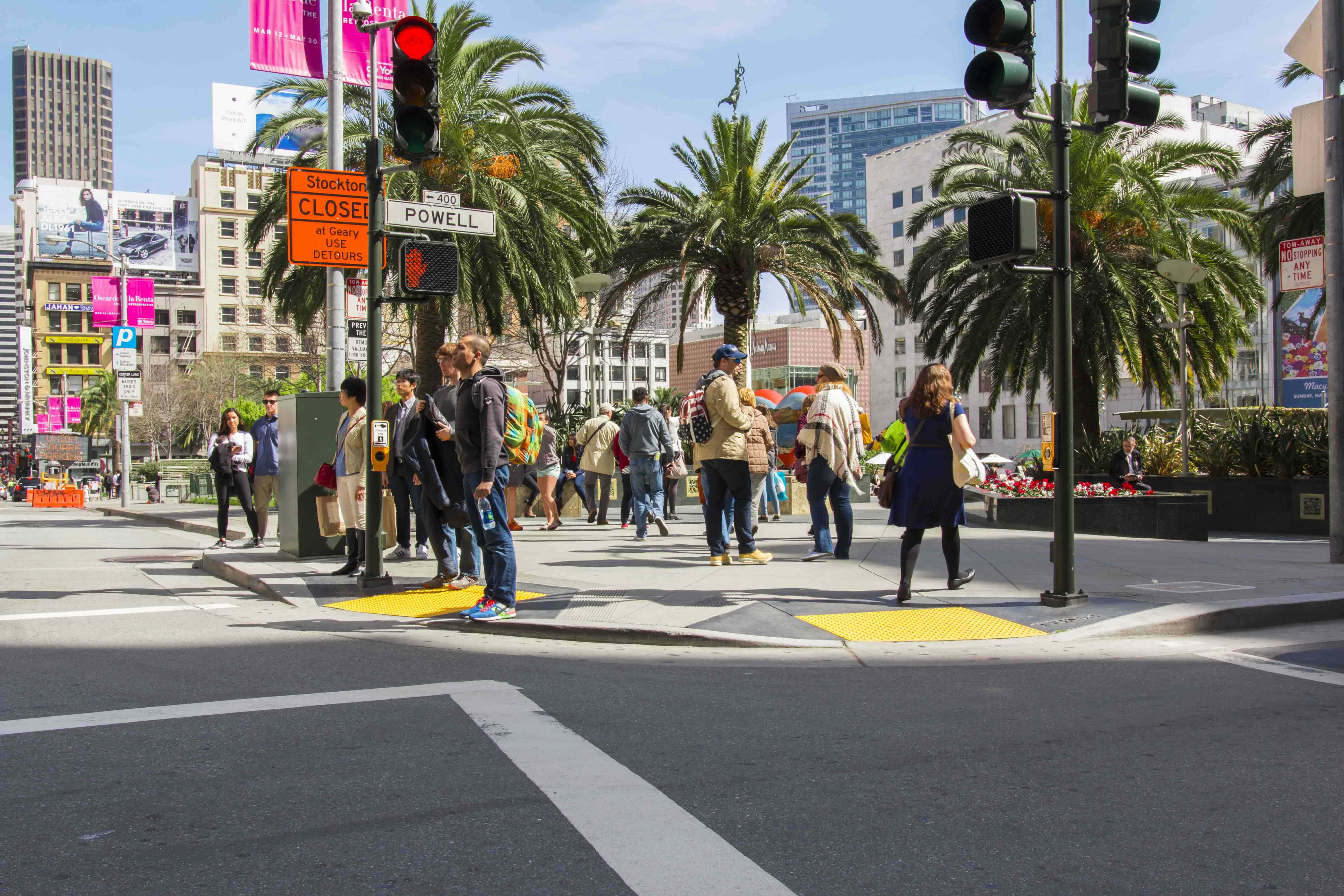

Intersections are rarely uniform in size or shape and are a staple of detectable warnings. They provide a detectable warning at all corners of an intersection of roads, usually at the base of a ramp leading onto the street, providing safety for visually impaired pedestrians.

Midblock

Midblock is a general term describing the transition from a safe walking area onto a vehicular path, located midway on a path. These are unique to each location and are generally found near parks or large public attractions. For pedestrians, these are especially important, as they usually are located at seemingly impromptu spots along a safe walking path.

Islands / Medians

Located midway between the two sides of a large intersection, islands provide a refuge on large thoroughfares for pedestrians to wait for the next crossing signal. These are very important on busy roads, allowing pedestrians and individuals with mobility devices a safe haven from heavy traffic.

Flush Transitions

Flush transitions are an overarching category of detectable warnings that denote a transition between two areas of the same elevation. Normally, curb ramp detectable warnings are between two different elevations (e.g. from sidewalk to street), but often the difference between a safe walking area and a dangerous vehicular path does not change in elevation.

Sidewalks & Curb Ramps Project Gallery

Learn more about our product lines

Sidewalks & Curb Ramp ADA Systems

Durable and reliable over the lifetime of the project, our sidewalk and curb ramp systems can be manufactured to achieve the specific needs of your walkways while achieving a greater accessible city.

Mass Transit ADA Systems

Bus, rail, and streetcar platforms are all unique unto themselves. To safeguard the wide range of transportation environments, we make a full line of straight or bull-nose dome tiles, pre-warning strips, and Tactile Direction Indicators and Navigational tiles.

True Radius ADA Systems & Architectural Series

We can create any specialty tile. Our Architectural Series works within the guidelines of local municipalities and ADA requirements to give you everything from True Radius Tiles to Brick Patterns--all with a range of Federal & Natural colors, and all ADA compliant.

Tactile Warning Delineators (TWDs)

The boundary between cyclists and pedestrians becomes more clear with delineator tiles. Tactile Warning Delineators (TWDs) provide a detectable change in slope on pedestrian access routes, indicating to people that they are transitioning from one space to another.

ADA Surface Applied Metal for Existing Infrastructure

Not all Tactile Warning Systems can be installed using Wet-Set; sometimes, they need to be Surface-Applied or thin-set. Our ADA Surface Applied Metal Tiles were designed for this; giving you the durability and quality of TekWay with the convenience of Surface Applied tiles.
